A Board
• Double sided stopper as pavement sign

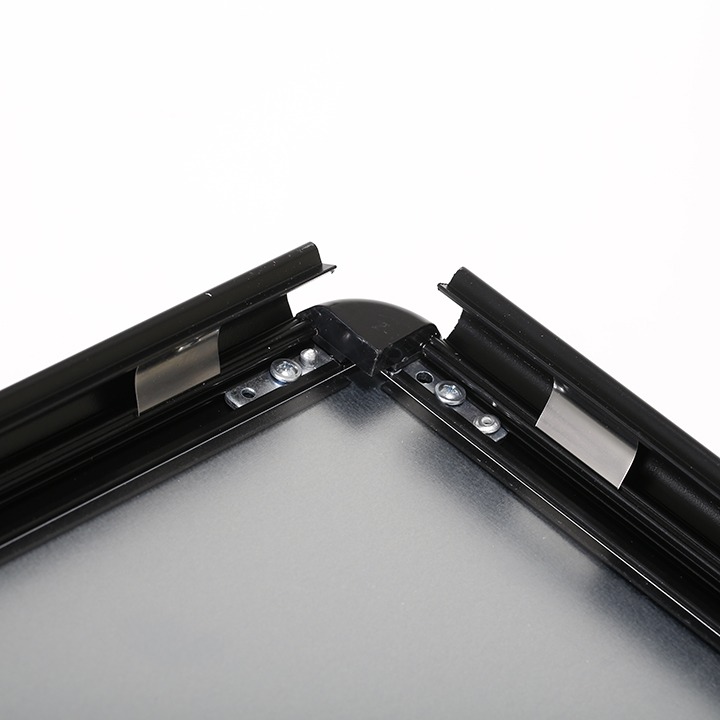

• ‘’Click clack’’ snap open principle for the frame
• Header board and brochure baskets are optional
• Metal back panel provides stability
ACCESORIES
COLOR OPTION
SIZES
20″ X 30″ (508 X 762 mm), 30″ X 40″ (762 X 1016 mm), A0 ( 841 X 1189 mm), A1 (594 X 841 mm), A2 (420 X 594 mm), B1 (700 X 1000 mm), B2 (500 X 700 mm)
A Board Product Specifications
| MATERIAL : Silver anodised aluminium PROFILE : 32 mm profile | WEIGHT | PACKING SIZE | ||||||
| MITRED SILVER | ROUND SILVER | POSTER | X | X1 | H1 | H2 | WITH PACKING | *W X H X D |
| UAB3250NA2 | UAB3200NA2 | 420 X 594 mm | 463 mm | 700 mm | 905 mm | 950 mm | 6,200 kg | 480 X 1000 X 112 mm |
| UAB3250NA1 | UAB3200NA1 | 594 X 841 mm | 637 mm | 800 mm | 1100 mm | 1150 mm | 10,350 kg | 750 X 1280 X 112 mm |
| UAB3251NA1 | UAB3201NA1 | 594 X 841 mm | 637 mm | 750 mm | 1005 mm | 1050 mm | 10,200 kg | 750 X 1180 X 112 mm |
| UAB3250NA0 | UAB3200NA0 | 841 X 1189 mm | 884 mm | 910 mm | 1400 mm | 1450 mm | 18,510 kg | 910 X 1520 X 112 mm |
| UAB3250NB2 | UAB3200NB2 | 500 X 700 mm | 543 mm | 700 mm | 905 mm | 950 mm | 8,350 kg | 650 X 1120 X 112 mm |
| UAB3250NB1 | UAB3200NB1 | 700 X 1000 mm | 743 mm | 850 mm | 1195 mm | 1250 mm | 13,350 kg | 840 X 1420 X 112 mm |
| UAB3250N23 | UAB3200N23 | 508 X 762 mm | 551 mm | 700 mm | 905 mm | 950 mm | 9,000 kg | 650 X 1120 X 112 mm |
| UAB3250N34 | UAB3200N34 | 762 X 1016 mm | 805 mm | 850 mm | 1195 mm | 1250 mm | 13,800 kg | 810 X 1280 X 112 mm |
| MATERIAL : Black / RAL 9005 powder coatedPROFILE : 32 mm profile | WEIGHT | PACKING SIZE | |||||||
| MITRED BLACK | ROUND BLACK | SAFE CORNER | POSTER | X | X1 | H1 | H2 | WITH PACKING | *W X H X D |
| UAB3250BA2 | UAB3200BA2 | UAB3210NA2 | 420 X 594 mm | 463 mm | 700 mm | 905 mm | 950 mm | 6,200 kg | 480 X 1000 X 112 mm |
| UAB3250BA1 | UAB3200BA1 | UAB3210NA1 | 594 X 841 mm | 637 mm | 800 mm | 1100 mm | 1150 mm | 10,350 kg | 750 X 1280 X 112 mm |
| UAB3251BA1 | UAB3201BA1 | UAB3211NA1 | 594 X 841 mm | 637 mm | 750 mm | 1005 mm | 1050 mm | 10,200 kg | 750 X 1180 X 112 mm |
| UAB3250BA0 | UAB3200BA0 | UAB3210NA0 | 841 X 1189 mm | 884 mm | 910 mm | 1400 mm | 1450 mm | 18,510 kg | 910 X 1520 X 112 mm |
| UAB3250BB2 | UAB3200BB2 | UAB3210NB2 | 500 X 700 mm | 543 mm | 700 mm | 905 mm | 950 mm | 8,350 kg | 650 X 1120 X 112 mm |
| UAB3250BB1 | UAB3200BB1 | UAB3210NB1 | 700 X 1000 mm | 743 mm | 850 mm | 1195 mm | 1250 mm | 13,350 kg | 840 X 1420 X 112 mm |
| UAB3250B23 | UAB3200B23 | UAB3210N23 | 508 X 762 mm | 551 mm | 700 mm | 905 mm | 950 mm | 9,000 kg | 650 X 1120 X 112 mm |
| UAB3250B34 | UAB3200B34 | UAB3210N34 | 762 X 1016 mm | 805 mm | 850 mm | 1195 mm | 1250 mm | 13,800 kg | 810 X 1280 X 112 mm |
* W:Width H: Height D: Depth
A Board Product Print Template
A Board Product Certificates & Warranty
Product in Place

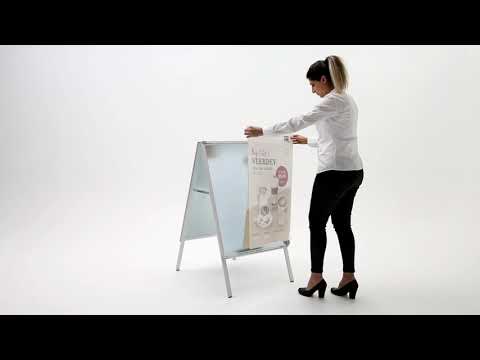

A Board Product Videos
