Clear Wall Separator

Now you can section and divide a room with unobstructed views!
Use clear room dividers when you need to control or contain an area but still allow you to restrict access and also see what is beyond the barrier. Portable see through clear dividers are perfect for a variety of applications and for a number of settings. Optional wheels available

ACCESORIES

SIZES

    MATERIAL : Silver anodised aluminium & PET WEIGHT PACKING SIZE
ARTICLE SIZE DESCRIPTION WITH PACKING *W X H X D
UHCWSN0010 1000 X 2000 mm  Clear Wall Separator / Silver 10,900 kg 1080 X 2070 X 85 mm
UHCWSB0010 1000 X 2000 mm Clear Wall Separator / Black RAL 9005 10,900 kg 1080 X 2070 X 85 mm
UHCWSW0010 1000 X 2000 mm Clear Wall Separator / White RAL 9010 10,900 kg 1080 X 2070 X 85 mm

* W:Width    H: Height   D: Depth



  ACCESORIES WEIGHT PACKING SIZE
ARTICLE DESCRIPTION WITH PACKING *W X H X D
UMSDA105A4  A4 - 8.5”X11” Brochure Holder (5 Pcs) 1,200 kg 225 X 250 X 265 mm
UMSDA100A5 A5 Brochure Holder (5 Pcs) 0,720 kg 175 X 230 X 175 mm
UMSDA10A43 A4/3 Brochure Holder (5 Pcs) 0,530 kg 125 X 230 X 175 mm

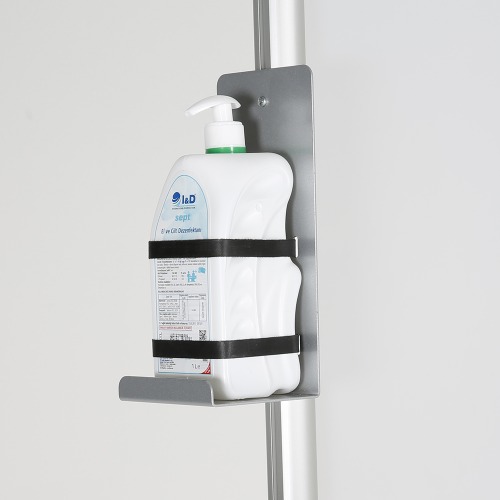

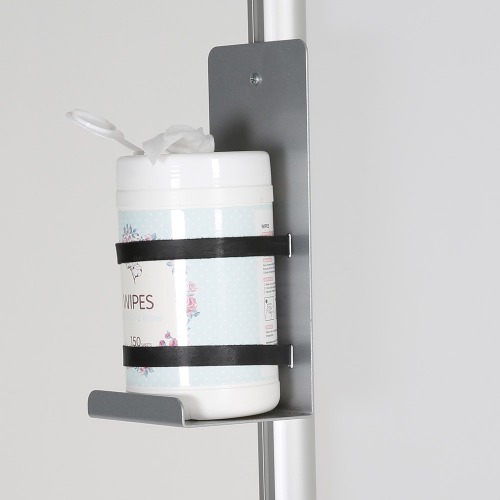

UYPFSPN000 Pump & Wipe Dispenser Bracket 0,850 kg 135 X 290 X 135 mm

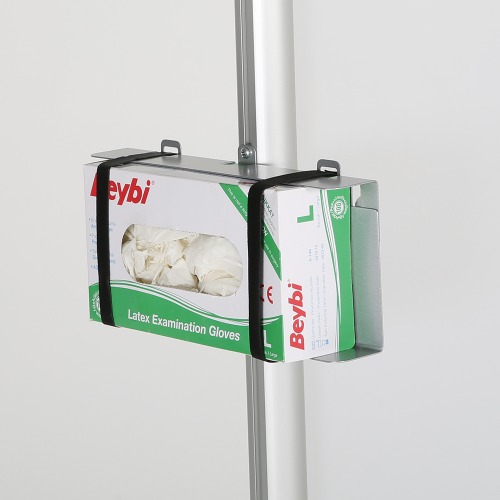

UYPFSBN000 Box Dispenser Bracket 0,700 kg 150 X 290 X 135 mm

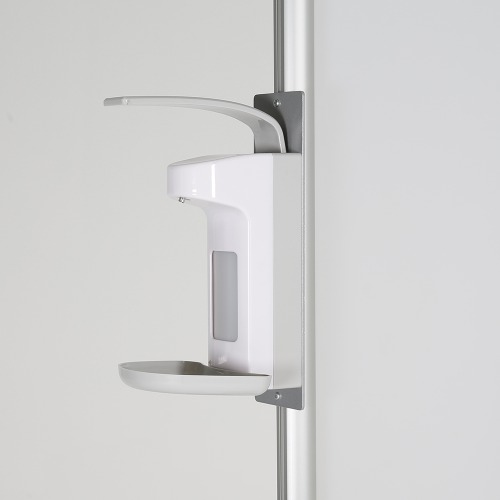

UFSD001001 Sanitizing Dispensers 500 ml. (without jel) - Vol 1 0,650 kg 130 X 340 X 220 mm
UFSD002001 Sanitizing Dispensers 1000 ml. (without jel) - Vol 1 0,900 kg 145 X 375 X 220 mm
UFSD002A01 Sanitizing Dispensers 1000 ml. (without jel) - Vol 2 0,700 kg 135 X 420 X 180 mm
UYPHCWS010 Clear Wall Wheel packed by 4 pcs 0,45 kg 160 X 160 X 75 mm
UYPHCWS020 Flat Connector for Clear Wall Separator
UYPHCWS030 Coonector Kit
UYPHCWS040 Wall Clips Silver
UYPHCWSB40 Wall Clips Black
UYPHCWSW40 Wall Clips White





• It is non-yellowing, lightweight and highly impact-resistant.

• For added durability, our translucent wall panels are fixed to the anodized extruded aluminium channels with a silicone wick.

• Since the 2020 pandemic started, clear wall dividers will be a crucial tool for managing the spread of COVID-19 and other infectious diseases in several facilities.

• When used as Check-In Barrier, they are perfect for any medical facility right at the reception area. In hospitals, primary care facilities, and dentist offices, clear room dividers act as a line of defence from infectious diseases spreading to either medical staff or patients.

• The transparent barrier allows communication to continue on either side of the partition as well. If there are multiple patients at reception, the Clear Dividers can act as a sneeze guard and also a form of crowd control between people.

• Since these dividers are freestanding and portable, they can easily be moved to different areas of the facility as needed.

• They are stackable, taking less space when not used.

• Rolls on levelling casters optional or can be fixed on ground by using the holes on the feet.

• Panel Material: Durable 1 mm clear PET

• Frame Material: Extruded and anodised aluminium

• Frame Finish: Black powder-coat paint, silver anodised or white powder-coat paint



CONNECTOR KIT FOR CLEAR WALL SEPARATOR


Clear Wall Separator the most popular social distancing item anywhere people would stand, exercise, queue or sit close together. Connector Kit Clear Wall Separator connects multiple Clear Wall Separators together.

• With help of Connector Kit, as many Clear Wall Separators as deeded can be connected together to create 78.74” high protection.
• Fixing protection screens with hinges at three heights, Connector Kit allows placing dividers with 90° up to 180°angle.
• It allows building straight wall-like screen as well as L, Z or U shape dividers
• Locking castors holds Clear Wall Separator to create light weight and ideal partition.
• It provides a safety barrier to help prevent infection.
• Simple assembly required. Spanner and allen key included in the kit for assembly.

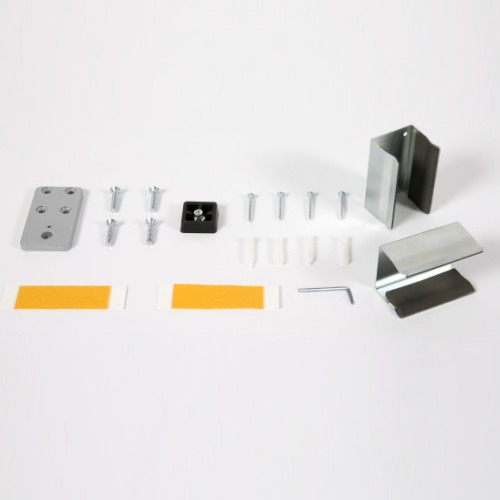

WALL CLIPS FOR CLEAR WALL SEPARATOR

Wall Clips is an accessory to fix Clear Wall Separator on a wall when the space is limited between the machines, ATMs or desks .

• Made of sturdy powder-coated steel ensuring quality and longevity.
• Clips are covered internally with soft pads (EVA foam) to hold Clear Wall Separator securely and prevent scratching the profiles.
• Wall Clips are 70 mm high, 43 mm wide and 39 mm deep.
• Wall clips are applied either with double sided self-adhesive tape or screws & wall plugs.
• Packed 2 x 35 mm with double sided self-adhesive tape and wall plugs.
• Easy to install; strong and durable.
• Packed 2 pieces.
• Self-adhesive tape and screws included.

FLAT CONNECTOR FOR CLEAR WALL SEPARATOR

Flat connector for Clear Wall Separator allows connecting multiple screens straight like a wall still keeping the full view. The pack includes top and bottom  connector, soft feet and fixing kit.

• Made of sturdy powder-coated steel ensuring quality and longevity.
