Smart LEDbox 35 mm Single Sided

• 29 mm profile thickness.
• Treated acrylic in the middle provides
   homogenous lighting.
• LED lisgt panels are ideal for wide range
   of indoor applications.
• Maximum poster size is 1200 x 2415 mm.

ACCESORIES

SIZES

20″ X 30″ (508 X 762 mm), 30″ X 40″ (762 X 1016 mm), 40″ X 60″ (1016 X 1524 mm), A0 ( 841 X 1189 mm), A1 (594 X 841 mm), A2 (420 X 594 mm), A3 (297 X 420 mm), A4 (210 X 297 mm), B0 ( 1000 X 1414 mm), B1 (700 X 1000 mm), B2 (500 X 700 mm)

MATERIAL : Silver anodised aluminiumPROFILE: 35 MMWEIGHTPACKING SIZE
ARTICLEEXTERNAL (x-y)POSTERCOPYLIGHTINGWITH PACKING*W X H X D
ULD35TN0A4257 X 344 mm210 X 297 mm187 X 274 mm4200-4500 LUX2,910 kg320 X 510 X 70 mm
ULD35TN0A3344 X 467 mm297 X 420 mm274 X 397 mm3900-4200 LUX3,560 kg410 X 630 X 70 mm
ULD35TN0A2467 X 641 mm420 X 594 mm397 X 571 mm3500-3900 LUX5,505 kg530 X 810 X 70 mm
ULD35TN0A1641 X 888 mm594 X 841 mm571 X 818 mm3000-3300LUX9,285 kg710 X 1060 X 70 mm
ULD35TN0A0888 X 1236 mm841 X 1189 mm818 X 1166 mm2500-2800 LUX16,080 kg960 X 1400 X 70 mm
ULD35TN0B2547 X 747 mm500 X 700 mm477 X 677 mm3000-3300 LUX6,928 kg710 X 910 X 70 mm
ULD35TN0B1747 X 1047 mm700 X 1000 mm677 X 977 mm2600-2900 LUX12,065 kg810 X 1210 X 70 mm
ULD35TN0B01047 X 1447 mm1000 X 1400 mm977 X 1377 mm2000-2300 LUX23,195 kg1110 X 1610 X 70 mm
ULD35TN023555 X 809 mm508 X 762 mm485 X 739 mm3000-3300 LUX7,965 kg620 X 970 X 70 mm
ULD35TN034809 X 1063 mm762 X 1016 mm739 X 993 mm2600-2900 LUX13,670 kg870 X 1220 X 70 mm
ULD35TN0461063 X 1571 mm1016 X 1524 mm993 X 1501 mm2000-2300 LUX26,340 kg1120 X 1740 X 70 mm

* W:Width H: Height D: Depth

Description

Smart LEDbox 35 mm Single Sided



An illuminated banner frame is an effective sales tool for promoting a service or product by adding light to a display. Smar LEDbox single Side lightbox has instant open moulding features to easily scroll in your ad graphs and also have a low profile, measuring 29 mm depth. LED light boxes, utilizes LED light bulbs to emit a displayed post.

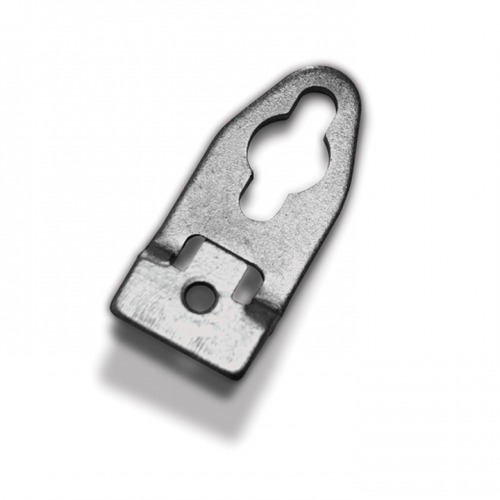

We suggest you use semi-transparent graphics to make your display better. A low-voltage illuminated banner frame is designed to display graphics in either vertical or horizontal form. All necessary equipment that changed the direction was included. We provided mounting brackets and hardware to match both sides of the illuminated banner frame.

This illuminated banner frame is perfect for use in a commercial environment to highlight an advertisement or promotional screen. They are ideal for retail stores and public transport areas.  Also the holder is very incredible. This illuminated banner frame, with a slim profile, is only 1,53 "or 39mm deep. So when it is properly placed, it rests against a wall, it will look smart and it will catch passers-by from coming in and out.

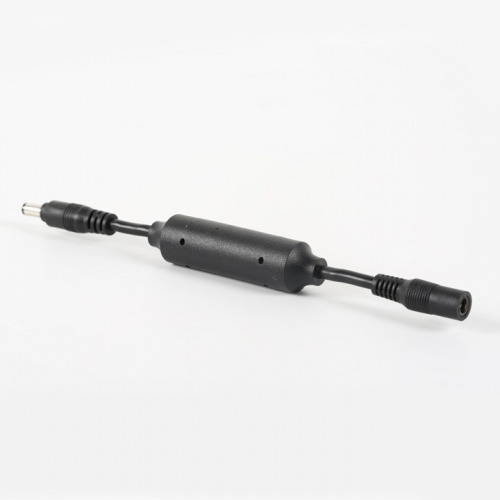

It is shipped with power supply. If you wish to use your LED frame 24 hours in 7 days, please ask for special 7/24 power supplies.
