Snap Frame Stainless Steel Look 25mm
• Attractive stainless steel look on the profile.
• Available for every oster sizes.
• ’’Click Clack’’ snap open working principle.
• Easy to mount, simple to carry.

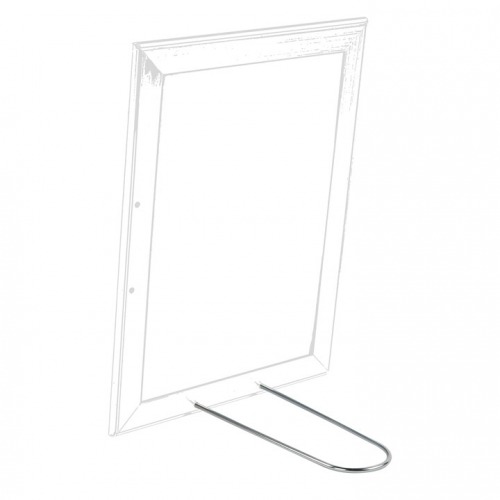

• Optional counter support provides
Landscape & portarait position.
• Mitred corners.
• Anti-glare poster cover sheet.
• Max length 2200 mm and max perimeter 6400 mm.
ACCESORIES

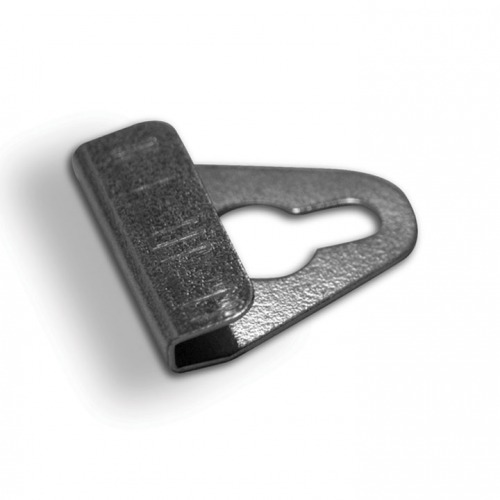

V Hanger / UYAA011010
Portrait / UYUP057000
COLOR OPTION
SIZES
20″ X 30″ (508 X 762 mm), 30″ X 40″ (762 X 1016 mm), 40″ X 60″ (1016 X 1524 mm), A1 (594 X 841 mm), A2 (420 X 594 mm), A3 (297 X 420 mm), A4 (210 X 297 mm), B1 (700 X 1000 mm), B2 (500 X 700 mm)
Snap Frame Stainless Steel Look 25mm Product Description
Another poster frame from our range is finished in stainless steel effect aluminum. Stainless steel effect achieved by a special coating process over aluminum substrate. This allows aluminum extrusion techniques to be used in the snap frame construction offering a poster change mechanism which would not be possible using real stainless steel.
These frames simply snap open and close to change the poster. By its easy and quick use, this snap frame is an ideal solution for frequently changing advertisements or posters. Moreover once it is mounted, no removal is needed to update the graphic. Another feature of this frame is anti-glare plastic protection cover. This cover to protect the poster from dirt and any damage as well as to prevent glaring.
A poster frame, sign holder, or other sign frame offers a great way to display advertisements and graphics. This sign frame is a wall mounted poster holder that can be hung in a vertical or horizontal format. Easy to use snap open edges allow for quick and easy graphic changes.
Each frame is shipped along with the required mounting hardware that is a set of 4 screws and 4 anchors. Also each frame comes with an instruction sheet explaining how to set and use.
Snap frame, quick clip metal sign frame, sign frame, metal sign frame, poster frame, sign holder, poster frame, poster holder, click clack frame, stainless frame.
Snap Frame Stainless Steel Look 25mm Accessories
Snap Frame Stainless Steel Look 25mm Product Specifications
| MATERIAL : Stainless Steel Look PROFILE : 25 mm 450 | WEIGHT | PACKING SIZE | |||
| ARTICLE | EXTERNAL (x-y) | POSTER | COPY | WITH PACKING | *W X H X D |
| UCN255S0A4 | 240 X 327 mm | 210 X 297 mm | 192 X 279 mm | TBA | 260 X 350 X 21 mm |
| UCN255S0A3 | 327 X 450 mm | 297 X 420 mm | 279 X 402 mm | TBA | 350 X 460 X 21 mm |
| UCN255S0A2 | 450 X 624 mm | 420 X 594 mm | 402 X 576 mm | TBA | 460 X 660 X 21 mm |
| UCN255S0A1 | 624 X 871 mm | 594 X 841 mm | 576 X 823 mm | TBA | 650 X 900 X 21 mm |
| UCN255S0B2 | 530 X 730 mm | 500 X 700 mm | 482 X 682 mm | TBA | 550 X 750 X 21 mm |
| UCN255S0B1 | 730 X 1030 mm | 700 X 1000 mm | 682 X 982 mm | TBA | 750 X 1050 X 21 mm |
| UCN255S023 | 538 X 792 mm | 508 X 762 mm | 490 X 744 mm | TBA | 560 X 810 X 21 mm |
| UCN255S034 | 792 X 1046 mm | 762 X 1016 mm | 744 X 998 mm | TBA | 800 X 1070 X 21 mm |
| UCN255S046 | 1046 X 1554 mm | 1016 X 1524 mm | 998 X 1506 mm | TBA | 1070 X 1590 X 21 mm |
* W:Width H: Height D: Depth
Snap Frame Stainless Steel Look 25mm Poster Thicknesses
| Articles | Poster Size | Standard Poster Thickness | Max Poster Thickness (Low density rigid posters such as PVC Foam,PP, etc) | Max Poster Thickness when rear profile without channel/groove (Low density rigid posters such as PVC Foam,PP, etc) | Notes |
| UCN255S0A5 | A5 | 0,1-0,2mm | 2mm | 4mm | Non-standard poster thickness to be informed with orders for production |
| UCN255S0A4 | A4 | 0,1-0,2mm | 2mm | 4mm | Non-standard poster thickness to be informed with orders for production |
| UCN255S0A3 | A3 | 0,1-0,2mm | 2mm | 4mm | Non-standard poster thickness to be informed with orders for production |
| UCN255S0A2 | A2 | 0,1-0,2mm | 2mm | 4mm | Non-standard poster thickness to be informed with orders for production |
| UCN255S0A1 | A1 | 0,1-0,2mm | 2mm | 4mm | Non-standard poster thickness to be informed with orders for production |
| UCN255S0A0 | A0 | 0,1-0,2mm | 2mm | 4mm | Non-standard poster thickness to be informed with orders for production |
| UCN255S0B2 | B2 | 0,1-0,2mm | 2mm | 4mm | Non-standard poster thickness to be informed with orders for production |
| UCN255S0B1 | B1 | 0,1-0,2mm | 2mm | 4mm | Non-standard poster thickness to be informed with orders for production |
| UCN255S0B0 | B0 | 0,1-0,2mm | 2mm | 4mm | Non-standard poster thickness to be informed with orders for production |
| UCN255S023 | 20” X 30” | 0,1-0,2mm | 2mm | 4mm | Non-standard poster thickness to be informed with orders for production |
| UCN255S034 | 30” X 40” | 0,1-0,2mm | 2mm | 4mm | Non-standard poster thickness to be informed with orders for production |
| UCN255S046 | 40” X 60” | 0,1-0,2mm | 2mm | 4mm | Non-standard poster thickness to be informed with orders for production |
