Weatherproof Frame 25mm
• WaterProof IP55
• Suitable for use under outdoor conditions.
• Ideal for posters of every size.
• Natural silver-anodized with different
available in RAL colors.

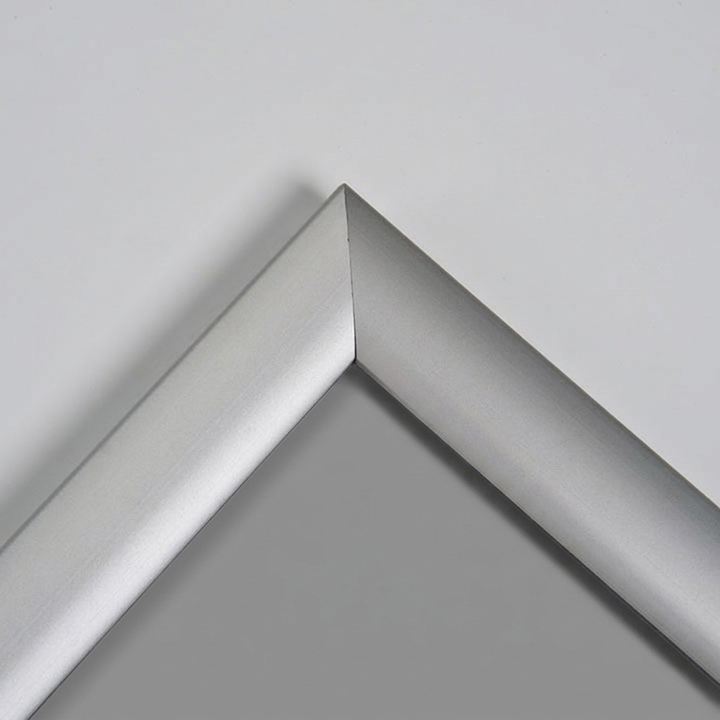

• Mitred corners.
• There are water drainage holes on the product
• Anti-glare poster cover sheet.
• Patented product (TR 2006 06254 PCT/TR06/000064)
• IPP55 Approved product
• Maximum poster size 1016 x 1524mm.
• Max length 1200 mm and max perimeter 3500 mm.
COLOR OPTION
SIZES
20″ X 30″ (508 X 762 mm), 30″ X 40″ (762 X 1016 mm), A1 (594 X 841 mm), A2 (420 X 594 mm), A3 (297 X 420 mm), A4 (210 X 297 mm), B1 (700 X 1000 mm), B2 (500 X 700 mm)
PATENT
TR 2006 06254 PCT/TR06/000064
PCT/EP2018/060515
Weatherproof Frame 25mm Product Description
Weatherproof Frames are a versatile and affordable option for presenting advertising content and other forms of public communication in an outdoor environment. The Weatherproof Frames are ideal for posters of every size in outdoor use. Weatherproof Frames are easy to use and easy to poster when the sides flip open. The natural silver-anodized finish aluminium frame, also available in different RAL colors is weather resistant and is a great display to exhibit signage outdoors.

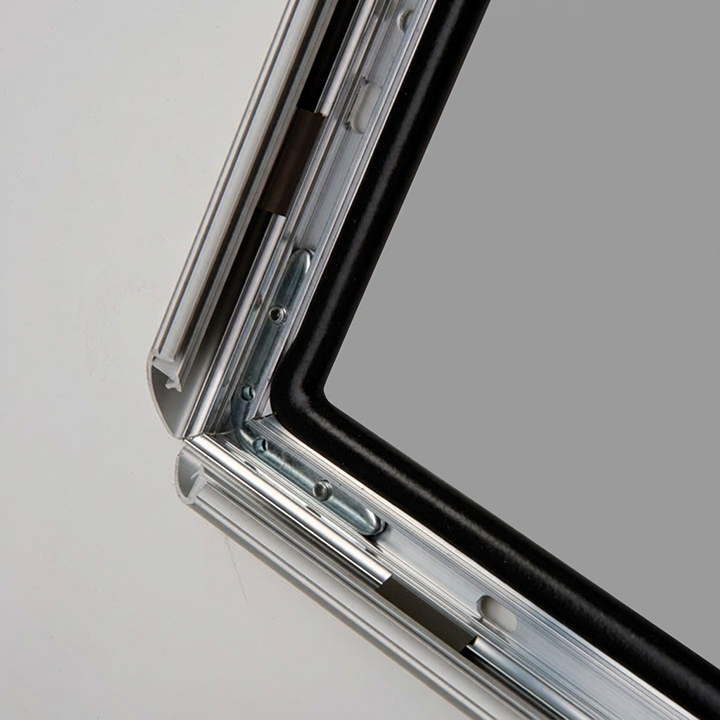

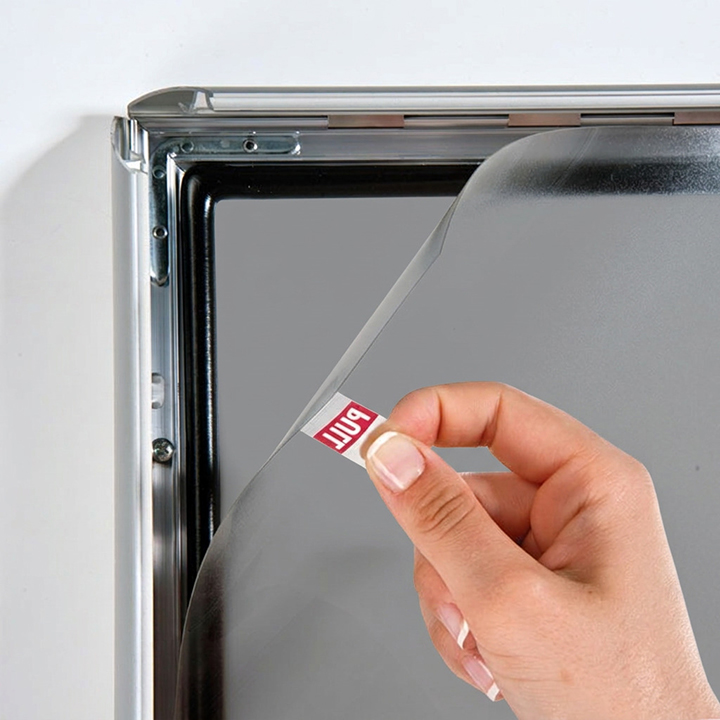

As an outdoor display unit, each frame has been designed to achieve maximum weather resistance and protection from other corrosive agents. The snap frame has been manufactured with a sturdy aluminium border and also features inner rubber gaskets to achieve resistance from unfavourable weather conditions, including rain and dust. An additional feature of the outdoor frame offering protection to images is the anti-glare transparent cover sheet. This protective overlay enhances graphic visibility, maximising interest and customer engagement with your prints.
Once the poster display is mounted into the wall it will assist all future advertising and promotional needs through the simple and easy rotation of alternative posters fastened by snap frame.
The poster frames are also used outer walls of shops, offices, hotels, parking areas, retail stores and restaurants.
This frame is tested and approved IP55 for outdoor use.
Weatherproof Frame 25mm Product Specifications
| MATERIAL : Silver anodised aluminium PROFILE : 25 mm 450 | WEIGHT | PACKING SIZE | |||
| ARTICLE | EXTERNAL (x-y) | POSTER | COPY | WITH PACKING | *W X H X D |
| UCH255N0A4 | 259 X 346 mm | 210 X 297 mm | 208 X 295 mm | 0,635 kg | 260 X 360 X 31 mm |
| UCH255N0A3 | 346 X 469 mm | 297 X 420 mm | 295 X 418 mm | 0,960 kg | 360 X 460 X 31 mm |
| UCH255N0A2 | 469 X 643 mm | 420 X 594 mm | 418 X 592 mm | 1,570 kg | 460 X 670 X 31 mm |
| UCH255N0A1 | 643 X 890 mm | 594 X 841 mm | 592 X 839 mm | 2,700 kg | 660 X 910 X 31 mm |
| UCH255N0B2 | 549 X 749 mm | 500 X 700 mm | 498 X 698 mm | 2,100 kg | 560 X 760 X 31 mm |
| UCH255N0B1 | 749 X 1049 mm | 700 X 1000 mm | 698 X 998 mm | 3,900 kg | 760 X 1060 X 31 mm |
| UCH255N023 | 557 X 811 mm | 508 X 762 mm | 506 X 760 mm | 2,380 kg | 570 X 830 X 31 mm |
| UCH255N034 | 811 X 1065 mm | 762 X 1016 mm | 760 X 1014 mm | 4,090 kg | 820 X 10180 X 31 mm |
* W:Width H: Height D: Depth
Weatherproof Frame 25mm Poster Thicknesses
| Poster Size | Standard Poster Thickness | Max Poster Thickness (Low density rigid posters such as PVC Foam,PP, etc) | Notes |
| A4 | 0,1-0,2mm | 2mm | with gasket / waterwick |
| A3 | 0,1-0,2mm | 2mm | with gasket / waterwick |
| A2 | 0,1-0,2mm | 2mm | with gasket / waterwick |
| A1 | 0,1-0,2mm | 2mm | with gasket / waterwick |
| A0 | 0,1-0,2mm | 2mm | with gasket / waterwick |
| B2 | 0,1-0,2mm | 2mm | with gasket / waterwick |
| B1 | 0,1-0,2mm | 2mm | with gasket / waterwick |
| B0 | 0,1-0,2mm | 2mm | with gasket / waterwick |
| 20” X 30” | 0,1-0,2mm | 2mm | with gasket / waterwick |
| 30” X 40” | 0,1-0,2mm | 2mm | with gasket / waterwick |
| 40” X 60” | 0,1-0,2mm | 2mm | with gasket / waterwick |
